• Versatile
Can be easily set as START, LAP or FINISH transmitter.

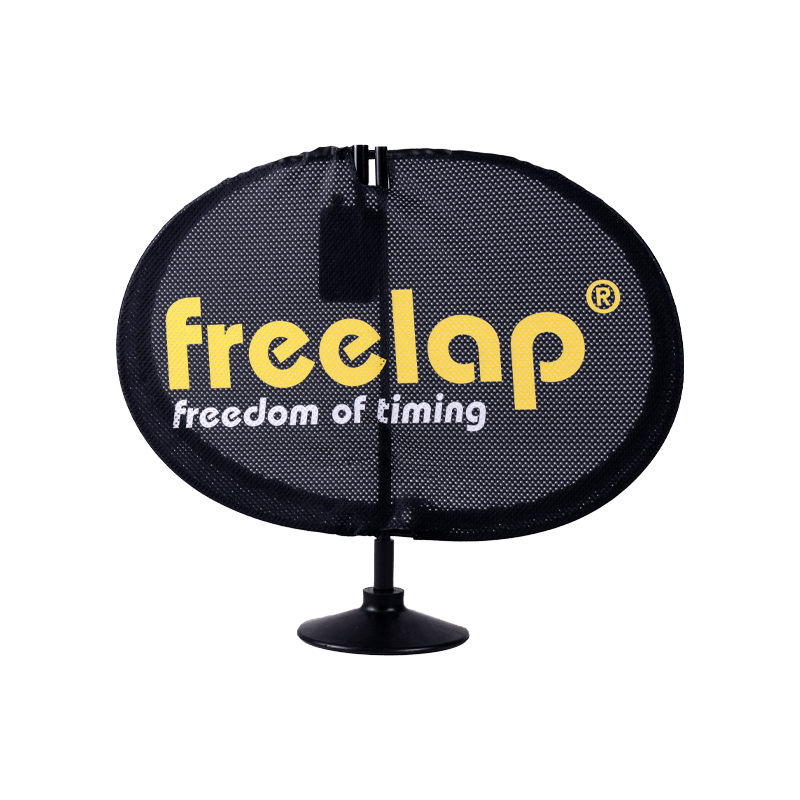

• Large detection field
The SpaceUnit provides a wide detection zone of 6 meters.

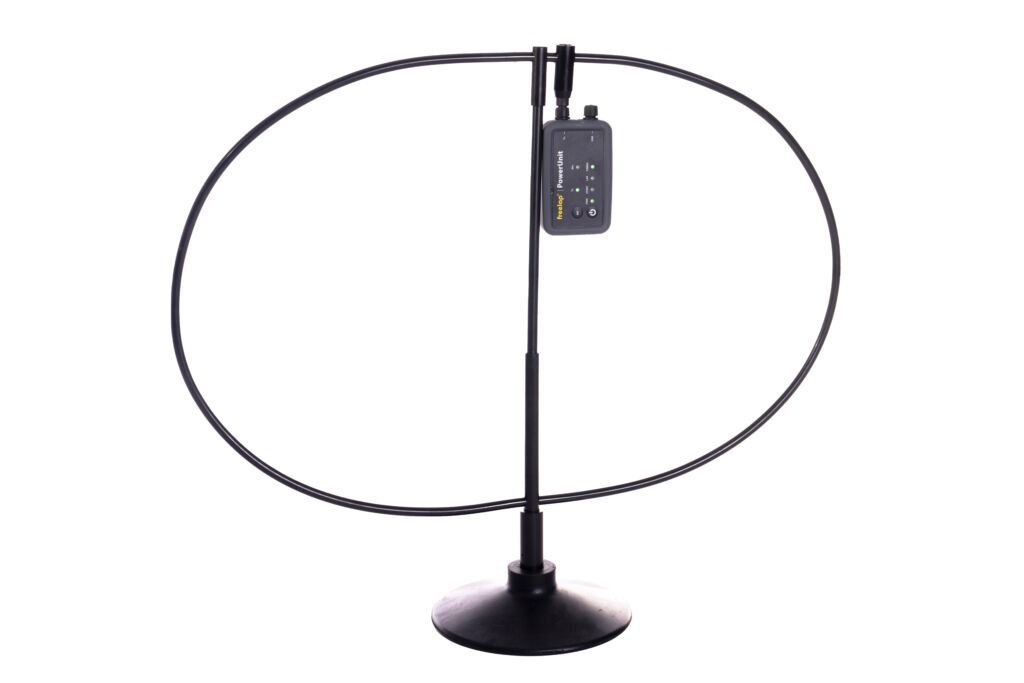

• Convenient and portable
The SpaceUnit can be easily fold / unfold. The whole transmitter is lightweight and packed into a drawstring bag.
• Compatible
Works with both FxChip and FxChip BLE.
• Rechargeable
Transmitter is charged using a power cable (provided).
How does it work ?
01

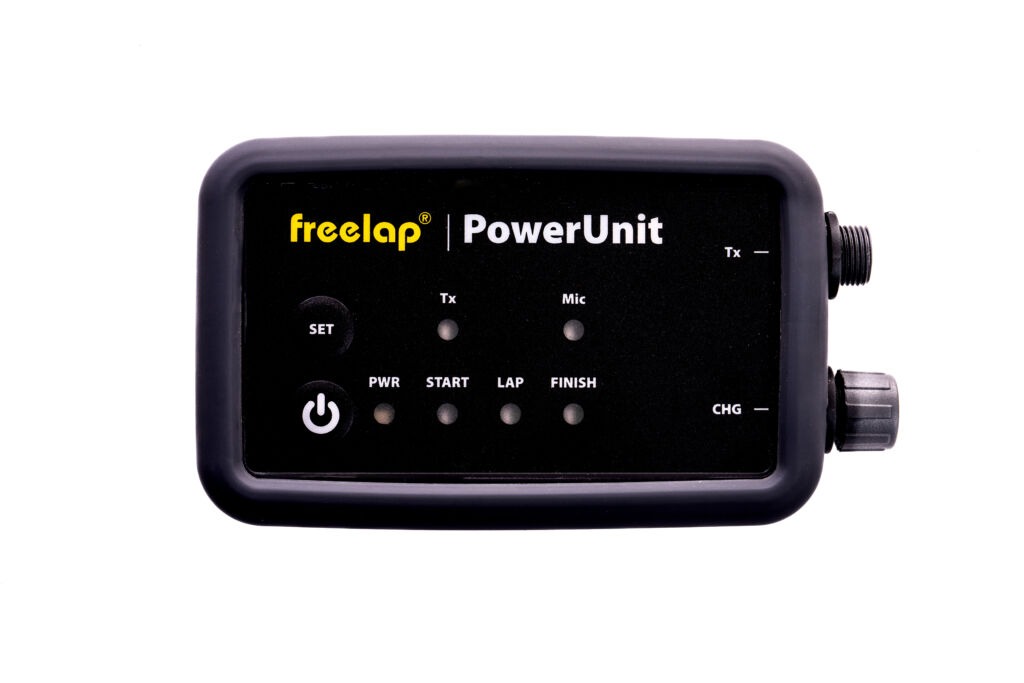

Press 2s on the Power button to turn it on. Press on the Set button to select the Tx mode.
02
Make short presses on the Power button to select the desired code (START / LAP / FINISH)
03
Place the transmitter on the ground on the side and parallel to the track (Freelap logo facing the track). It must be placed at max. 6m of the rider’s passage.
For an optimal detection and accuracy, take the start 15m before the START transmitter.
01
Press 2s on the Power button to turn it on. Press on the Set button to select the Tx mode.
02
Make short presses on the Power button to select the desired code (START / LAP / FINISH)
03
Place the transmitter on the ground on the side and parallel to the track (Freelap logo facing the track). It must be placed at max. 6m of the rider’s passage.
For an optimal detection and accuracy, take the start 15m before the START transmitter.
Technical Sheet:
• Weight: 700 g
• Dimensions: PowerUnit: 75 x 140 x 25 mm / SpaceUnit: Diameter 65 cm
• Compatibility: FxChip / FxChip BLE
• Transmitter with 2 modes: Tx / Mic
• Transmitter with 3 codes: START / LAP / FINISH
• Detection field: 6 meters
• Minimum time between 2 transmitters: 0,7 second
• Accuracy: 2/100 of a second
• Battery: 3.7V 5AH LiPo rechargeable battery, automatic shutdown after 12h
• Battery life: 50 hours
• Water resistance: IP67
• Operating temperatures: -20°C to +50°C
