LED Display

Display your chronos live on large screen

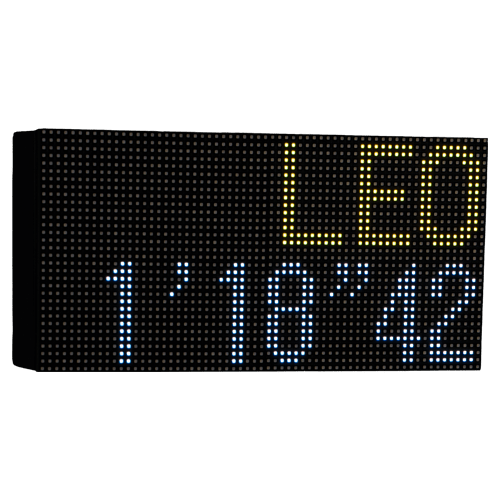

This LED screen displays live the ID or name of the athlete who crossed the finish line, and his LAP time. Visible at 30 meters, it lets both coaches, athletes and the public view live the results of the race.This screen is compatible with FxChip BLE and Relay Coach BLE. Times are automatically transmitted to the screen via Bluetooth.

LED Display

Display your chronos live on large screen

This LED screen displays live the ID or name of the athlete who crossed the finish line, and his LAP time. Visible at 30 meters, it lets both coaches, athletes and the public view live the results of the race.This screen is compatible with FxChip BLE and Relay Coach BLE. Times are automatically transmitted to the screen via Bluetooth.

Scroll down to discover

• Convenient & resistant
It is compact and lightweight (2.1kg). Made with robust materials, it resists extreme temperatures and bad weather.

• Optimal readability
It offers a 64×32 dots resolution, and it is visible at 30 meters.

• Autonomous
Your Freelap BLE devices automatically transmit the data. No manipulation is required.

• Customizable
Customize it using Freelap Device Manager app:
– Color of the athlete’s ID / intials
– Color of the athlete’s time
– Display time of an athlete’s time on the screen
– Display modes: LAP (LAP time or interval – by default) or SPLIT (total time from a START)
– Alternate display function of the last 2 LAP times
– Brightness of the screen
– Pairing: connect a LED Display to a Relay Coach BLE so that the LED Display only displays the times collected by the Relay Coach BLE to which it is connected.

• Compatible
Works with both Relay Coach BLE and FxChip BLE.

• Rechargeable / Battery indicator
A led indicates the battery level (green, orange, red). Battery life of 10 hours. Charging cable included.

How does it work ?

01

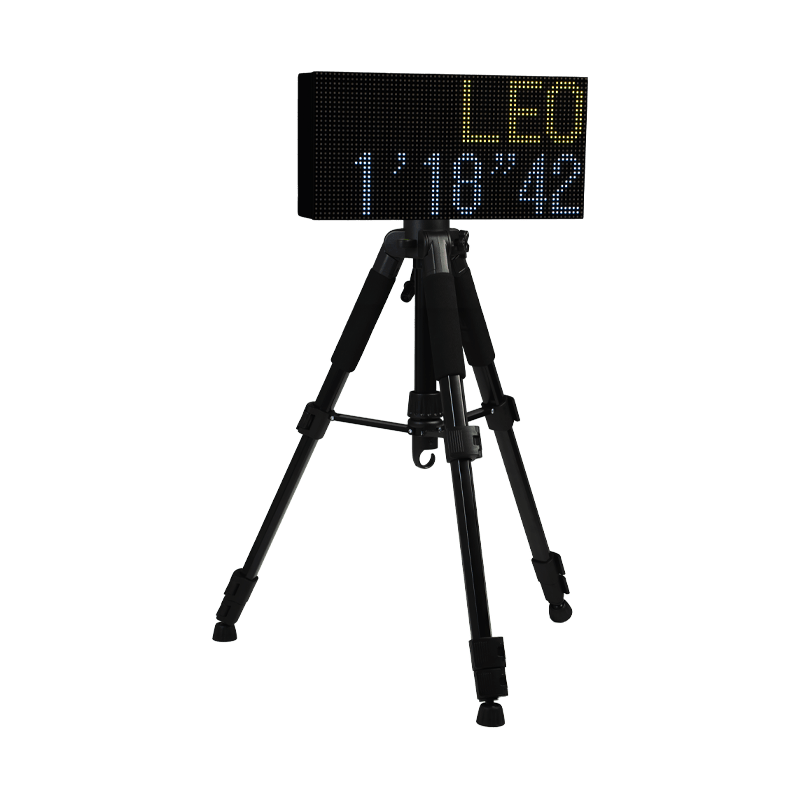

Insert the tripod into the screen’s preformed slot.

02

Place your LED Display on the ground, after the finish line at a distance of 50 meters maximum.

03

Press the “ON/OFF” button to turn on the screen.

Your Freelap BLE devices automatically transmit the data to your LED Display.

01

Insert the tripod into the screen’s preformed slot.

02

Place your LED Display on the ground, after the finish line at a distance of 50 meters maximum.

03

Press the “ON/OFF” button to turn on the screen.

Your Freelap BLE devices automatically transmit the data to your LED Display.

Technical Sheet:

• Dimensions: 320 x 160 x 85 mm
• Weight: 2.1 kg
• Display: LED
• Definition: 64 X 32 dots
• Visible at: 30 m
• Compatibility: Relay Coach BLE, FxChip BLE
• Technology: Bluetooth
• Bluetooth detection distance: up to 50 meters
• Battery: 12V 8Ah LiPo
• Battery life: 10 hours
• Water resistance: IP64
• Operating temperatures: -20°C to +50°C
• Included: Charger
