Bluetooth transponder of Freelap timing system (FxChip BLE)
Bluetooth transponder - Freelap professional automatic timing system for sports training
Bluetooth transponder worn by the athlete - Freelap automatic timing system

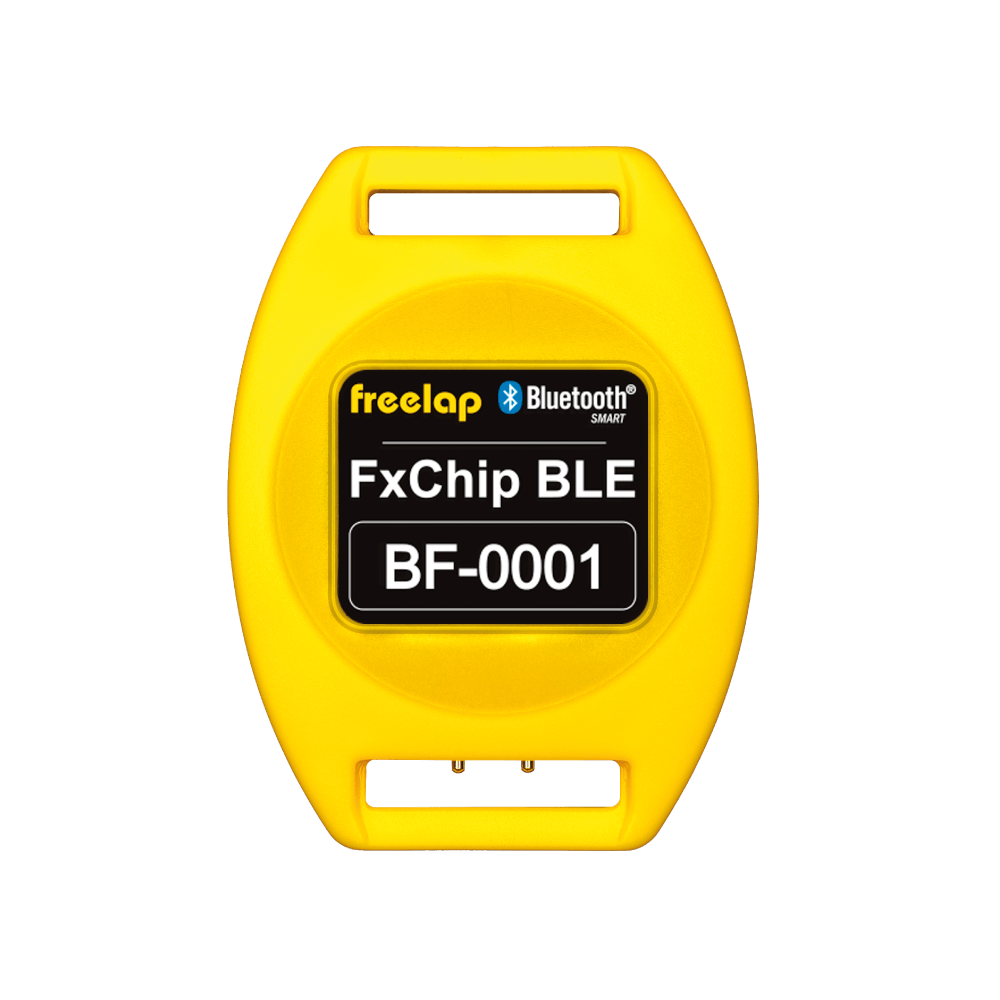

FxChip BLE

FREELAP® CHIP WITH BLUETOOTH SMART TECHNOLOGY.

The Bluetooth chip detects transmitters crossed by the athlete, and automatically sends all timing data via Bluetooth to your mobile device (via MyFreelap app – free download on Android and iOS).
The FxChip BLE has no button: it automatically turns on when moved and stops after 10 minutes of inactivity. Each FxChip BLE has a unique ID number, which lets you time multiple athletes simultaneously. It is the most compact and lightest chip on the market, and it can be easily attached using its attachment clip (included) or a belt (option). Ultra easy to use, autonomous and smart, it will revolutionize your training!

Prev
Next

TECHNICAL SHEET

  • Dimensions: 36 x 48 x 14mm
  • Weight: 17g
  • Technology: Bluetooth smart (BLE)
  • Compatibility: Tx Gate Pro, Tx Touch Pro, Tx Junior Pro, Tx Pro Track, Tx H2O Pro, Tx FullTrack Pro, PowerUnit (with Tx Unit65 / Tx Unit3), CxUnit, LED Display
  • Accuracy: 2/100 of a second
  • Memory: 10 LAPs
  • Battery: CR 2032
  • Battery life: 2000 hours
  • Water resistance: 5ATM
  • Operating temperatures: -20°C to +50°C

INSTRUCTIONS

• TURN ON / OFF YOUR FXCHIP BLE : The Bluetooth chip has no button: it automatically turns on when moved and stops after 10 minutes of inactivity.

• ATTACH THE FXCHIP BLE :

– For track and field / speed and agility training :

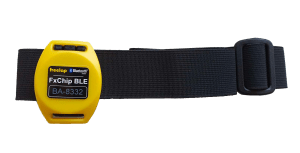

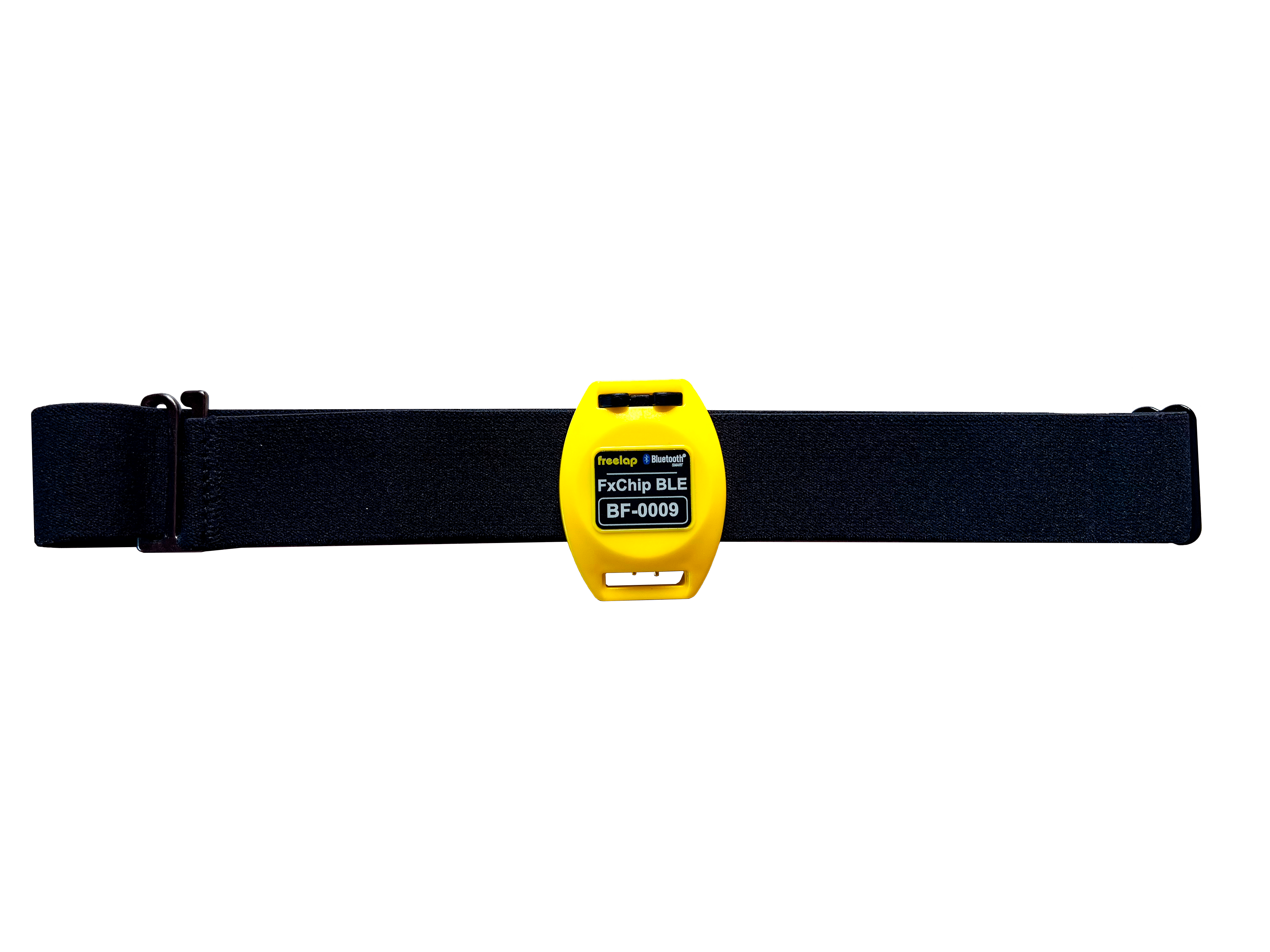

Attach your FxChip BLE to the athlete using his FxClip (provided) : Insert the clip into the notch at the top of the back of your FxChip BLE. Then hang the clip on the belt of the athlete’s short. It must imperatively be attached to the waist, centered in the alignment of the navel and positioned vertically.

– For MTB :
The FxChip BLE must be attached to the bike using the FxMTB (velcro strap). It must be attached to the fork of the bike, positioned vertically, facing forward.

The FxChip BLE is an autonomous and smart device that does not require any manipulation, except its good fixation and orientation.

• UPDATE YOUR FXCHIP BLE : To update your Freelap® BLE device, use Feelap Device Manager app.
