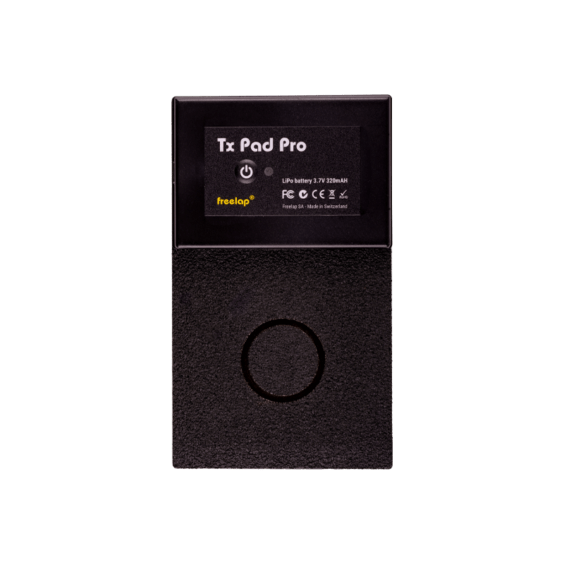

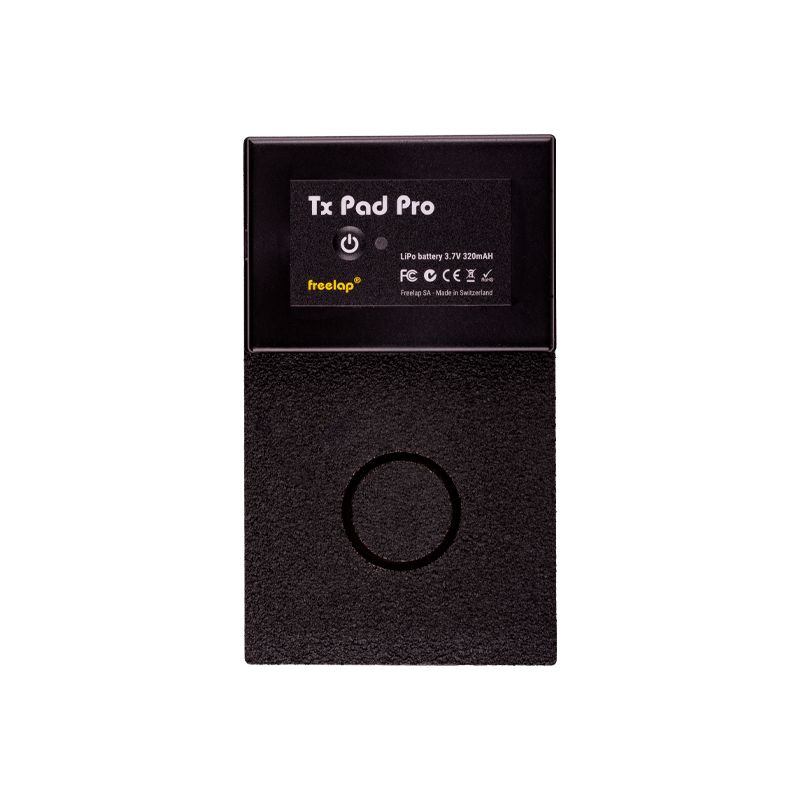

Tx Pad Pro

Premium START transmitter designed for block starts & 3-point starts.

Tx Pad Pro is the premium Freelap transmitter specially designed for block starts and 3-point starts. Easy to use, it is placed on ground on the start line. As soon as the athlete removes his finger from the transmitter, the chip timer is instantly triggered with a high accuracy.


Tx Pad Pro

Premium START transmitter designed for block starts and 3-point starts.

Tx Pad Pro is the premium Freelap transmitter specially designed for block starts and 3-point starts. Easy to use, it is placed on ground on the start line. As soon as the athlete removes his finger from the transmitter, the chip timer is instantly triggered with a high accuracy.

Scroll down to discover

• Accurate
Triggers the start with a 0,01s accuracy

• Autonomous
Athlete presses/releases a button to trigger the start; Athletes can train on their own.

• Versatile
Can be used for block starts and 3-point starts.

• Ergonomic
For an optimal ease of use and to avoid imbalances, the start zone of the transmitter is flat, non-slip, and large.

• Compatible
Works with both FxChip and FxChip BLE.

• Longer battery life
Thanks to its Power button, you can turn on / off the device to extend battery life.

• Rechargeable
Transmitter is charged using magnetic USB cable (provided).

How does it work ?

How does it work ?

01

Press the Power button for 1s to turn it on (green led lights up).

02

Place the Tx Pad Pro on the start line.

03

Put yourself in the start position and keep your finger pressed on the start zone of the transmitter.

Remove quickly your finger and start the race.

01

Press the Power button for 1s to turn it on (green led lights up).

02

Place the Tx Pad Pro on the start line.

03

Put yourself in the start position and keep your finger pressed on the start zone of the transmitter.

Remove quickly your finger and start the race.

Technical Sheet:

• Weight: 130 g
• Dimensions: 170 x 100 x 15 / 3 mm
• Start zone dimensions: Diameter 30 mm
• Compatibility: FxChip / FxChip BLE
• Transmitter with 1 code: START
• Detection field: 1.5 meters
• Minimum time between 2 transmitters: 0,7 second
Accuracy: 1/100 of a second
• Battery: 3.7V 320mAH LiPo rechargeable battery, automatic shutdown after 12h
• Battery life: 300 hours
• Water resistance: IP67
• Operating temperatures: -20°C to +50°C

Instructions for use:
