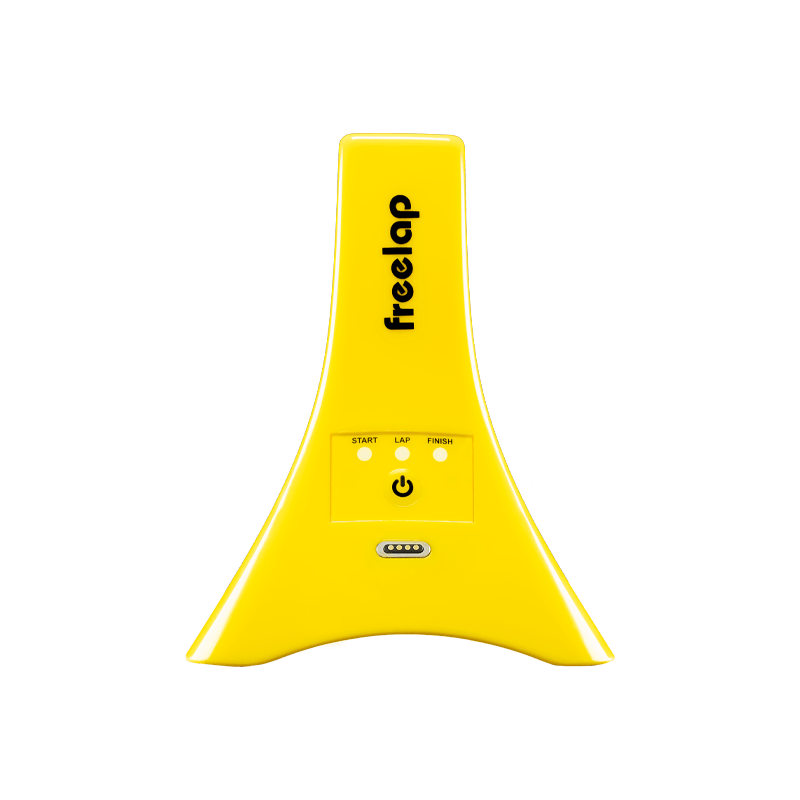

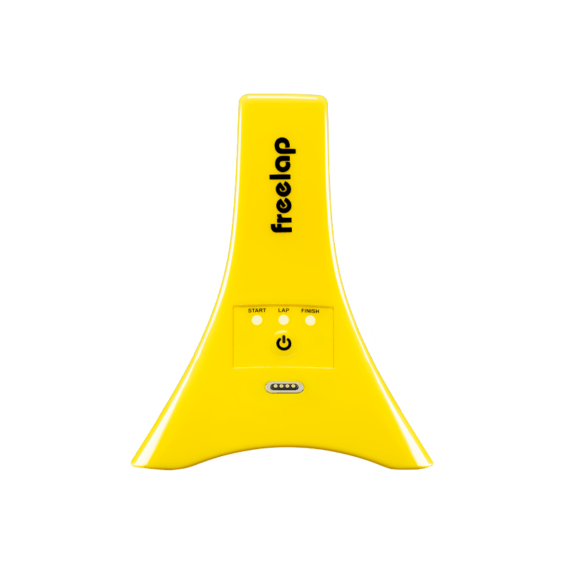

Tx Junior Pro

MUST-HAVE MULTIPURPOSE TRANSMITTER

Versatile, Tx Junior Pro can be quickly set as a START, LAP, or FINISH transmitter. Thus, it lets you get both your LAP times and your SPLIT times.
Convenient and easy to use, it lands on the ground and emits a magnetic field automatically detected by your chip when it passed by. The transmitter adapts to all fields and situations. Timing data is transmitted without risk of interference or loss of signal.
With a detection field of 1.5 meters, Tx Junior Pro can cover 2 lanes: 1 lane on each side of the transmitter. Athletes can run on 2 lanes at the same time. If you want to time more lanes simultaneously, just add transmitters. Tx Junior Pro can be used with other Freelap® transmitters. It switches off automatically to save the battery.

Prev
Next

TECHNICAL SHEET

  • Weight: 220 g with batteries
  • Dimensions: 115 x 115 x 150 mm
  • Compatibility: FxChip / FxChip BLE
  • Transmitter with 3 codes: START / LAP / FINISH
  • Detection field: 1.5 meters
  • Minimum distance between 2 transmitters: 10 meters
  • Accuracy: 2/100 second
  • Batteries: 2 x LR6 (AA) + battery indicator, and automatic shutdown after 12h
  • Battery life: 300 hours
  • Water resistance: 3ATM
  • Operating temperatures: -20°C to +50°C

INSTRUCTIONS

• TURN ON AND SET YOUR TX JUNIOR PRO :
– To turn on the transmitter simply press the central “ON” button for 1 second.
– Once the transmitter is on, press the central button again to select the desired code (START/ LAP/ FINISH). Each press of the central button switches you to the next code. The LED of the selected code flashes.

• PLACE YOUR TX JUNIOR PRO ON YOUR TRACK :
– Place the Tx Junior Pro on the ground.
– The transmitter has a detection field of 1.5m, so it must be placed:

– at the edge of the track, less than 1.5m from the athlete’s pass (so that the chip of the athlete crosses the detection field).
– If you use a Tx Touch Pro to take the start : 80cm after the desired distance (because the chip will detect the magnetic field 80cm before the actual position of the transmitter).
– Tx Junior Pro transmitters must be at least 10m apart (between them, or with other transmitters).
/! \ Your FxChip BLE has a temporary memory of 10 Laps. It means that your track must contain a maximum of 11 transmitters.

• SIMULTANEOUSLY USE TX JUNIOR PRO ON ADJACENT LANES :
The Tx Junior Pro can cover 2 lanes: 1 lane of 1.22m on each side of the transmitter. Athletes can run at the same time on 2 adjacent lanes. To time more lanes, you can add transmitters. /! \ Do not superimpose magnetic fields: If you want to time on 4 lanes, 2 transmitters are enough: 1 to cover the lane n°1 and n°2, and 1 other to cover the lanes n°3 and n°4.

• ASSOCIATE IT WITH OTHER TRANSMITTERS  :
To make Freelap® system work, you must have a transmitter set with the code “FINISH” on your track. The Tx Junior Pro is a versatile transmitter, so you can use several Tx Junior Pro on your track (set as START, LAP and FINISH transmitters). You can also use it in combination with other Freelap® transmitters (e.g.: you can use the Tx Touch Pro transmitter as START transmitter). Transmitters must be spaced at least 10m apart, with a minimum space time of 0.7 second.
