• Accurate
Triggers the start with a 0,01s accuracy.
• Realistic
Instantly triggers the start when the starting gate hits the ground.
• Covers 2 riders
Mx Start can cover 2 riders (1 rider on each side of the transmitter).
• Compatible
Works with both FxChip and FxChip BLE.
• Rechargeable
Transmitter is charged using a USB magnetic cable (provided).
How does it work ?
01

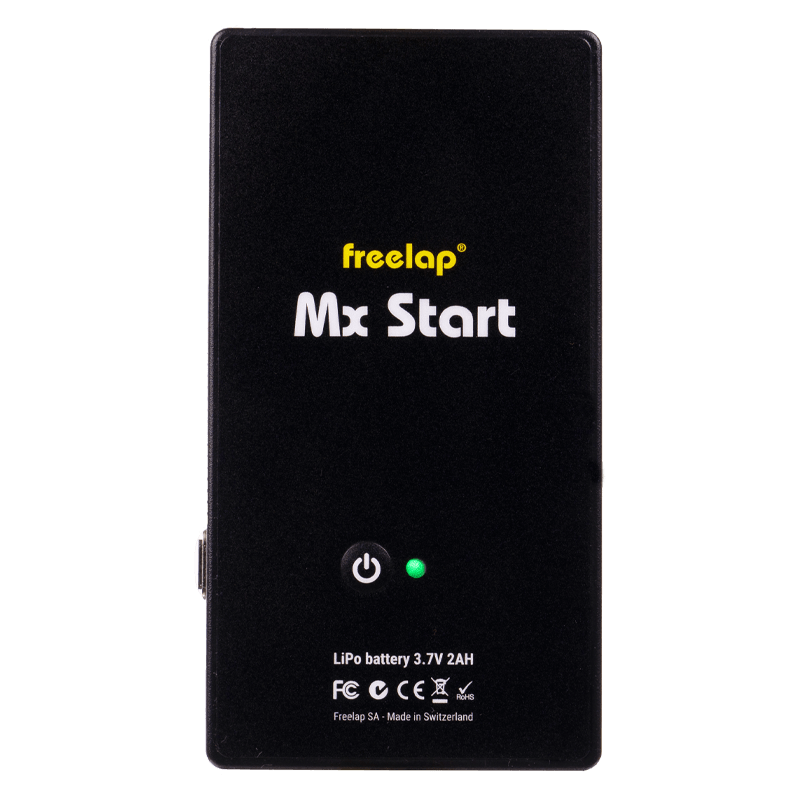

Press 2s on the Power button to turn it on (green LED lights up).
02

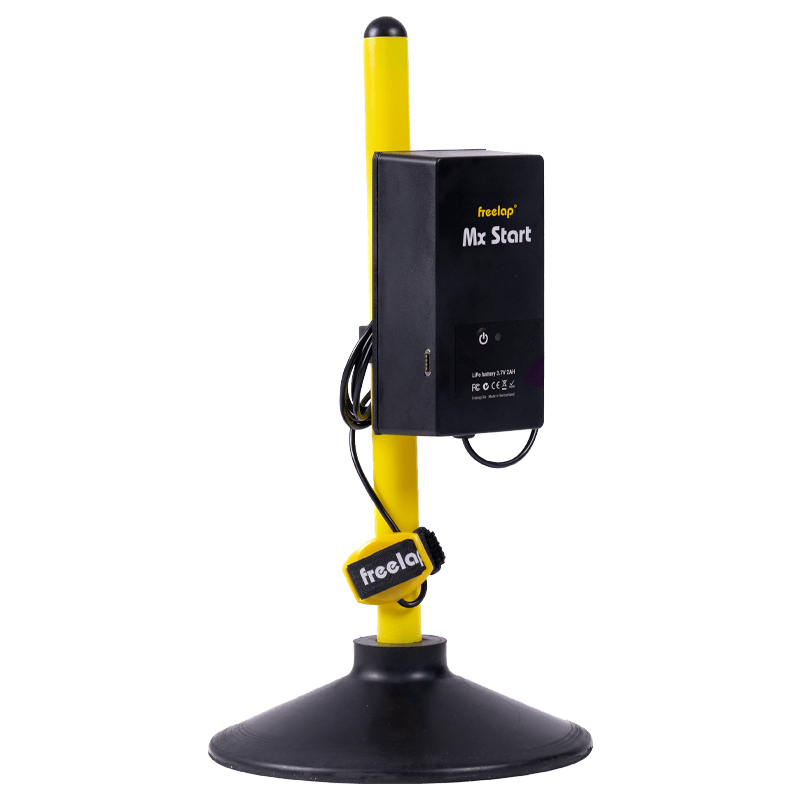

Place it on the ground at 1.5 meters max. next to the rider. Adjust the height of the Mx Start case to the same level as the motorbike’s foot rest.
03
Attach the Mx Start sensor to the side of the starting gate using its Velcro strap (the sensor must be in direct contact with the starting gate).
When the starting gate hits the ground, the Mx Start instantly triggers the transponder’s timer with an accuracy of 0,01s.
01
Press 2s on the Power button to turn it on (green LED lights up).
02
Place it on the ground at 1.5 meters max. next to the rider. Adjust the height of the Mx Start case to the same level as the motorbike’s foot rest.
03
Attach the Mx Start sensor to the side of the starting gate using its Velcro strap (the sensor must be in direct contact with the starting gate).
When the starting gate hits the ground, the Mx Start instantly triggers the transponder’s timer with an accuracy of 0,01s.
Technical Sheet:
• Weight: 300 g
• Dimensions: 150 x 80 x 50 mm/span>
• Compatibility: FxChip / FxChip BLE
• Transmitter with 1 code: START
• Detection field: 1.5 meters on each side (left/right)
• Minimum time between 2 transmitters: 0.7 second
• Accuracy: 0,01 second
• Battery: 3.7V 2AH LiPo rechargeable battery, automatic shutdown after 2h
• Battery life: 500 hours
• Water resistance: IP67
• Operating temperatures: -20°C to +50°C
