DISPLAY YOUR CHRONOS LIVE ON LARGE SCREEN!

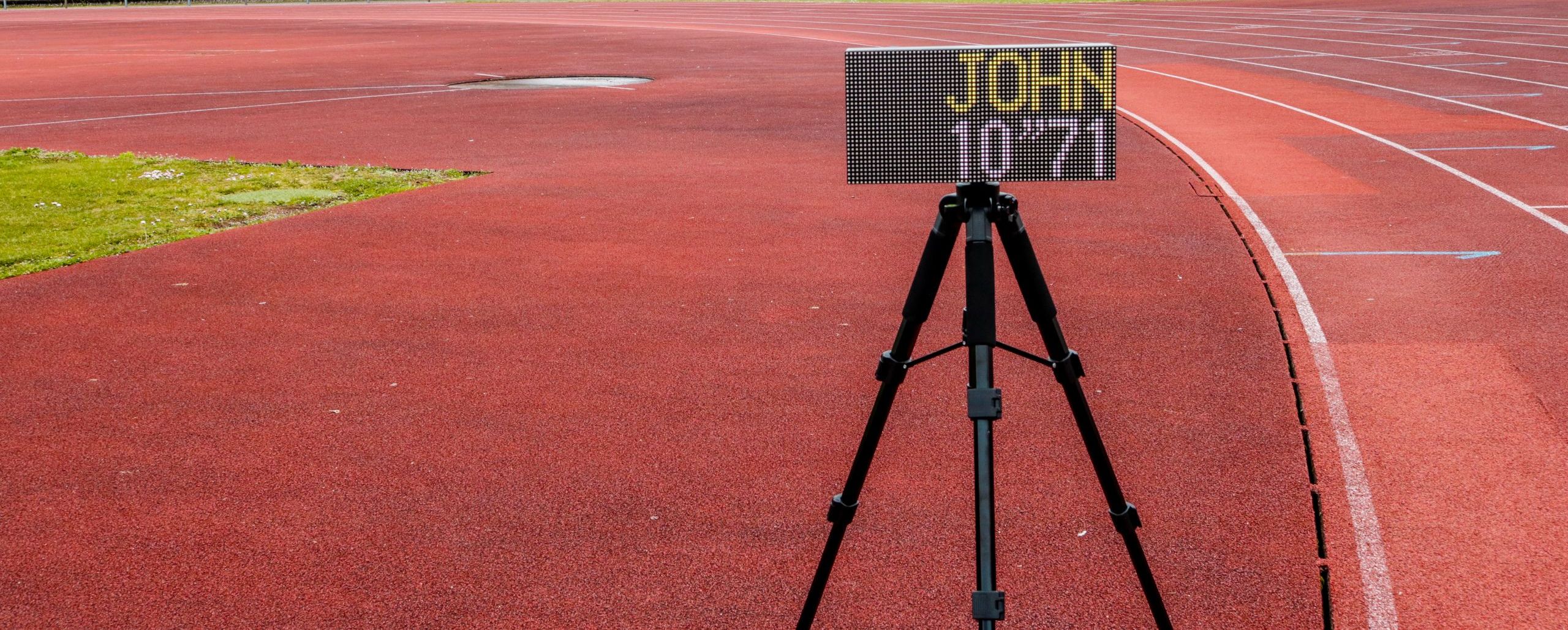

This LED screen displays live the ID or name of the athlete who crossed the finish line, and his LAP time. Visible at 50 meters, it lets both coaches, athletes and the public view live the results of the race.
This screen is compatible with FxChip BLE and Relay Coach BLE. Times are automatically transmitted to the screen via Bluetooth. The screen comes with tripod, charger and padded carrying case.



Prev
Next

TECHNICAL SHEET

  • Dimensions: 320 x 160 x 95 mm
  • Weight: 3.1 kg (+ tripod 600 g)
  • Display: LED
  • Definition: 64 X 16 dots
  • Visible at: 50 m
  • Compatibility: Relay Coach BLE, FxChip BLE
  • Technology: Bluetooth
  • Bluetooth detection distance: up to 50 meters
  • Battery: 12V 8Ah LiPo
  • Battery life: 5 hours (charging time 8 hours)
  • Water resistance: 3ATM
  • Operating temperatures: -20°C to +50°C
  • Included: tripod, charger and carrying case

INSTRUCTIONS

• PLACE YOUR LED DISPLAY :
– Screw the screen onto its tripod (supplied).
– Place your LED Display on the ground, after the FINISH transmitter at a distance of 50 meters maximum.

• TURN ON YOUR DEVICE AND DISPLAY DATA :
– Press the “ON/OFF” button to turn on the screen.
– Your LED Display uses broadcast communication. This means that your Freelap® BLE devices automatically transmit the data. No manipulation is required.
– When an athlete crosses the detection field of a FINISH transmitter, the corresponding athlete’s ID and his time are displayed on the screen. The data is displayed until the next athlete passes. After 5 minutes of inactivity, the Freelap® logo is displayed.
– If you use multiple LED Displays, the data of all your Freelap® BLE devices will be transmitted to all your LED Displays in the same way.
– If you want to associate a Freelap® BLE device with a single LED Display, make this setting (pairing) from your Freelap Device Manager app.
